LU3000 M/MY Tools

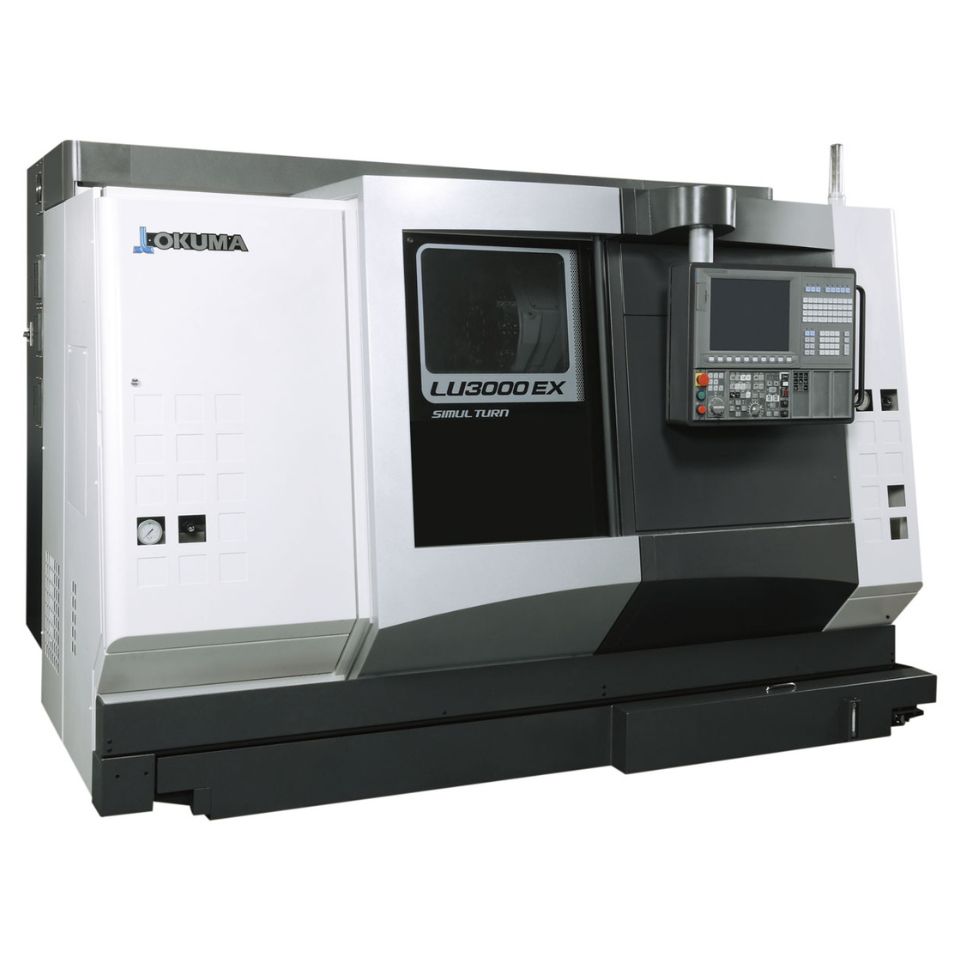

LU3000 EX

Manufacturer: Okuma
Model: LU3000 M/MY Tools

Request a Quote
PDF File

Velocity Products has the largest inventory of tooling Only for Okuma in North America.

All Velocity live tools are greased for life, run-in at the factory, pressure tested, CMM inspected, and serialized inspection reports kept on file. Velocity Tooling for Okuma uses oversize output bearings, and spiral bevel gears are machined in matched sets, then lapped in matched sets.

• STP & STL files are available online.

• All Velocity tools are covered by a three year warranty.

• Velocity LU3000 M tools are in stock at our facility in Huntsville, AL.

Tool Types

Static Holders


Blade Holder (Extended)
Item No: 14.910.0.0207.1

Blade Size: 32 mm (2)

Reversible (Sub/Main): Yes

Coolant: External

Blade Holder (Extended)
Item No: 14.910.0.0058.1

Blade Size: 32 mm

Reversible (Sub/Main): Yes

Coolant: External

Blade Holder
Item No: 14.910.0.0169.1

Blade Size: 32 mm

Reversible (Sub/Main): Yes

Coolant: External

Full Depth Boring Bar
Item No: 14.910.0.0247.2

Output Size (inches): 2.00

Coolant: Ext./Int.

OD-I
Item No: 14.910.0.0209.0

Output Size (inches): 1.00

Reversible (Sub/Main): Yes

Coolant: External

Y-Axis
Item No: 14.910.0.0392.0

Output Size (inches): 1.00 (2)

Reversible (Sub/Main): Yes

Coolant: External

OD-II
Item No: 14.910.0.0210.0

Output Size (inches): 1.00

Reversible (Sub/Main): Yes

Coolant: External

Offset Boring Bar
Item No: 14.910.0.0208.0

Output Size (inches): 1.50

Reversible (Sub/Main): Yes

Coolant: Ext./Int.

Quad Boring Bar
Item No: 14.910.0.0363.0

Output Size (inches): 1.00 (4)

Reversible (Sub/Main): No

Coolant: Ext./Int.

Capto Live Tools


Cross
Item No: 14.101.0.0325.0 (14.101.0.0138.1)

Coolant (PSI): IC (1,00)

Output: C4

Ratio (In:Out): 1:1

Maximum RPM: 6,000

Cross
Item No: 14.101.0.0316.0

Coolant (PSI): IC (1,00)

Output: C5

Ratio (In:Out): 1:1

Maximum RPM: 6,000

Face
Item No: 14.800.0.0233.1

Coolant (PSI): IC (1,450)

Output: C4

Ratio (In:Out): 1:1

Maximum RPM: 6,000

Cross Tools


Cross
Item No: 14.101.0.0270.0 (14.101.0.0074.0)

Coolant (PSI): External

Output: ER-32

Ratio (In:Out): 1:1

Maximum RPM: 6,000

Cross
Item No: 14.101.0.0269.0 (14.101.0.0073.0)

Coolant (PSI): External

Output: ER-32

Ratio (In:Out): 1:1

Maximum RPM: 6,000

Cross Y-Axis
Item No: 14.101.0.0161.0

Coolant (PSI): External

Output: ERAX-20 (2)

Ratio (In:Out): 1:1

Maximum RPM: 6,000

Offset Cross
Item No: 14.101.0.0287.0

Coolant (PSI): External

Output: ERAX-25

Ratio (In:Out): 1:1

Maximum RPM: 6,000

Offset Cross
Item No: 14.101.0.0146.1

Coolant (PSI): IC (1,000)

Output: ERAX-25

Ratio (In:Out): 1:1

Maximum RPM: 6,000

Offset Cross Y-Axis
Item No: 14.101.0.0261.0

Coolant (PSI): External

Output: ERAX-25 (2)

Ratio (In:Out): 1:1

Maximum RPM: 6,000

Face Tools/Adjustable Angle Tool/Gear Hobbing Tool


Face
Item No: 14.800.0.0379.0 (14.800.0.0176.0)

Coolant (PSI): External

Output: ER-32

Ratio (In:Out): 1:1

Maximum RPM: 6,000



Face
Item No: 14.800.0.0378.0 (14.800.0.0213.0)

Coolant (PSI): IC (1,450)

Output: ER-32

Ratio (In:Out): 1:1

Maximum RPM: 6,000



High Speed Face
Item No: 14.800.0.0429.0

Coolant (PSI): External

Output: ER-20

Ratio (In:Out): 1:2

Maximum RPM: 12,000



High Speed Face
Item No: 14.800.0.0427.0

Coolant (PSI): IC (1,450)

Output: ER-20

Ratio (In:Out): 1:2

Maximum RPM: 12,000



Hobber
Item No: 14.800.0.0228.0

Coolant (PSI): External

Ratio (In:Out): 2:1

Maximum RPM: 3,000



±90°
Item No: 14.826.0.0015.0

Coolant (PSI): External

Output: ERAX-20

Ratio (In:Out): 1:1

Maximum RPM: 6,000



Capto Static Tools


OD-I
Item No: 14.910.0.0239.0

Output: C4

Reversible (Sub/Main): No

Coolant (PSI): Ext./Int.



OD-I Y-Axis
Item No: 14.910.0.0118.0

Output: C4 (2)

Reversible (Sub/Main): No

Coolant (PSI): Ext./Int.



Offset Boring Bar
Item No: 14.910.0.0237.0

Output: C4

Reversible (Sub/Main): No

Coolant (PSI): Ext./Int.
